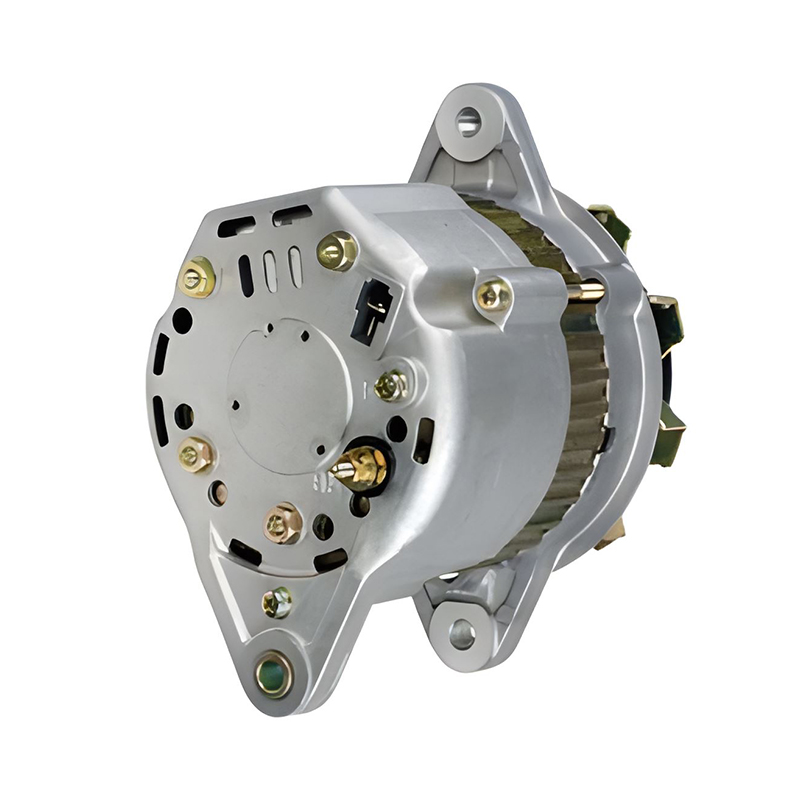

24V 20A 12114N/5812003300 Mitsubishi car alternator for EX5, EX3, ISUZU 2K, 3KC1, C240 ENGINE

Product Model: ZKM31171

OEM No.
WPS
12114N

Mitsubishi
32A6806200, 3446816100, 3446816101,
3446826100, 3446826101, A001T70283,
A007TA8083, A1T70283, A1T70783, A7TA8083,
A7TA8383

Isuzu
5812003300, 5812003350, 8944264470,
8971433290

Hitachi
GD206512C, LR22023, LR22024, LR22026

Contact Us
PREV：24V 50A A4TU5991/1812005981 Mitsubishi car alternator for ISUZU FRR, NRR, FRD, 6HL1 ENGINENEXT：24V 25A 12114N/A7TA8383 MITSUBISHI car alternator for ISUZU LIFTTRUCKS 4JB1, 4JG2 ENGINE
Product Information

The ZKM31171 model automotive alternator is rated for a 24V DC system with a continuous output current of 20A. It features an integrated internal voltage regulator, suitable for various commercial and passenger vehicles, offering stable performance, durability, and reliability. This alternator is designed for use in EX5 and EX3 ISUZU 2K/3KC1/C240 engine series, serving as a direct replacement for original equipment, with strong compatibility, easy installation, and maintenance-free operation for greater convenience.


Product Specifications:
Voltage / Current: 24V / 20A
Regulator Type: Internal Voltage Regulator
Shaft Diameter: Ø15mm
Pulley Specification: Ø82mm/Single B (5/8)
Motor Diameter (D): 165mm
Adjustable Hole Diameter: M8
B+ Output Terminal: M5
Mounting Dimensions: A = 45.0, B = 13.0, C = 80.0


Compatible Vehicle Models:
Compatible Models: EX5, EX3, ISUZU 2K, 3KC1, C240 ENGINE


This product is ideal for replacing original alternators or upgrading vehicle electrical systems, ensuring long-term reliable performance.


This one is also the same as Mitsubishi's OEM part numbers 12114N and 5812003300, specifically designed for Isuzu 2K, 3KC1, C240 diesel engines and EX5, EX3 construction machinery, featuring high durability and strong anti-vibration capability, widely used in forklifts, mini excavators, and industrial equipment.



ZKM31171 Common Application: EX5 EX3 ISUZU 2K 3KC1 C240 ENGINE

Voltage:

24V



Amps:

20A



Regulator:

Internal



Shaft Size:

Ø15mm



Pulley/Gooves:

Ø82mm/SingleB(5/8)



Mount Piv./D

165mm



Adj.Hole Dia:

M8



Piv.Hole Mount:

Ø10.5mm



+B Output:

M5



Exhaust Part:





OE No:

LR220-23, 5812003300, LR220-24, 5812003350.

Hella:JA796IR

LESTER:12114

PIC:204-208

LRA02437

A=45.0

B=13.0

C=80.0
