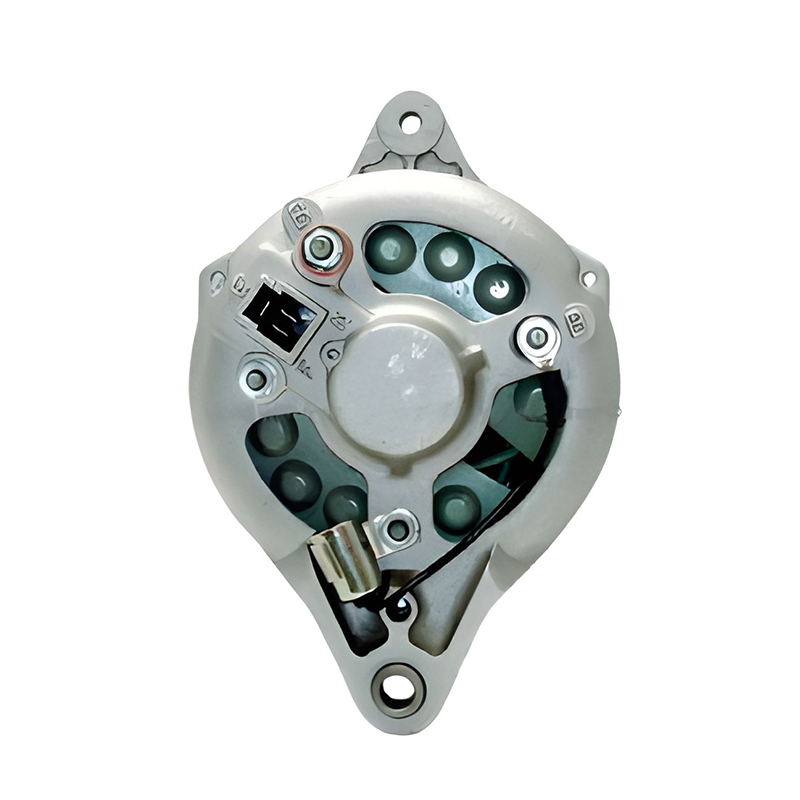

12V 45A 14131N/2702041010 DENSO car alternator for TOYOTA 4K, 5R, 12R, 18R, 22R ENGINE

Product Model: ZKM31170

OEM No.
WPS
14131N

Toyota
2702031141, 2702041010, 2702041011, 2702041012, 2702041013, 2702041020, 2702041030, 2702041031, 2702041060, 2702045020, 2702061010, 2702061011, 2702061012

Denso
0210000430, 021000053, 0210000530, 0210000531, 0210000532, 021000059, 021000135, 0210001350, 0210001351, 021000181, 0210001810, 021000182, 021000185, 0210001850, 021000189, 0210001890, 0210001892, 0210002760, 0210002761, 021000373, 0210003730, 021000375, 0210003770, 0210004110, 0210004112, 021000420, 0210004200, 021000421, 0210004210, 0210004211, 0210004212, 0210004213, 021000422, 0210004220, 021000469, 0210004690, 0210005051, 021000519, 021000551, 021000565, 0210005650, 0210005651, 0210005652, 021000593, 0210005930, 0210006600, 021000703

Contact Us
PREV：12V 55A 22070N/2702054250 DENSO car alternator for TOYOTA DYNA 2.4L, 2.8L, 2L, 3L ENGINENEXT：24V 20A 14578N/2702096601 DENSO car alternator for TOYOTA LIFT TRUCKS 2J 2H B ENGINE
Product Information

The ZKM 31170 model automotive alternator is rated for a 12V DC system with a continuous output current of 45A. It features an integrated internal voltage regulator, suitable for various commercial and passenger vehicles, offering stable performance, durability, and reliability. This alternator is designed for use in TOYOTA 4K and 5R engine series, serving as a direct replacement for original equipment, with strong compatibility, easy installation, and maintenance-free operation for greater convenience.


Product Specifications:
"Voltage / Current: 12V / 45A
Regulator Type: Internal Voltage Regulator
Shaft Diameter: Ø17mm
Pulley Specification: Ø72mm/Single A (3/8)
Motor Diameter (D): 173mm
Adjustable Hole Diameter: M8
B+ Output Terminal: M6
Mounting Dimensions: A = 50.0, B = 12.0, C = 76.0"


Compatible Vehicle Models:
Compatible Models: TOYOTA 4K, 5R, 12R, 18R, 22R ENGINE


This product is ideal for replacing original alternators or upgrading vehicle electrical systems, ensuring long-term reliable performance.


This one is also the same as DENSO's OEM part numbers 14131N and 2702041010, widely used in classic Toyota engine series such as 4K, 5R, 12R, 18R, and 22R, featuring high cost-effectiveness and excellent durability, suitable for vintage sedans, pickups, and light commercial vehicles.



ZKM31170 Common Application: TOYOTA 4K 5R 12R 18R 22R ENGINE

Voltage:

12V

Amps:

45A



Regulator:

Internal



Shaft Size:

Ø17mm



Pulley/Gooves:

Ø72mm/SingleA(3/8)



Mount Piv./D

173mm



Adj.Hole Dia:

M8



Piv.Hole Mount:

Ø10.5mm



+B Output:

M6



Exhaust Part:





OE No:

27020-41010,021000-0530,27020-45031,021000-5190

Hella: JA157

LESTER:14131

PIC:290-104

LRA00266

A=50

B=12

C=76
